Double beam overhead crane

  • QD model double beam overhead crane

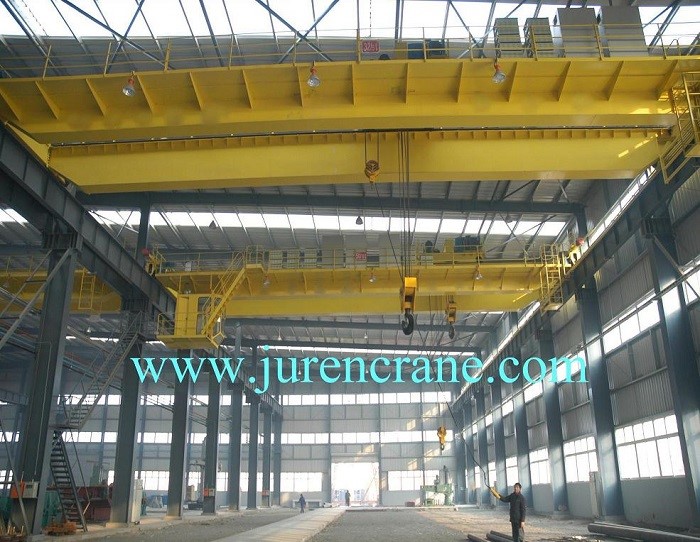

QD model double beam overhead crane

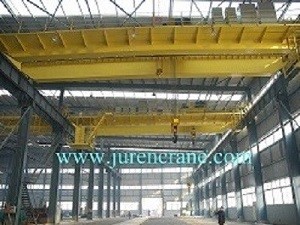

QD model double beam overhead crane

  • Capacity: 5~500ton
  • Span: 7.5~35m
  • Lifting height: 6~30m
  • Duty Class: A3/A4/A5/A6
  • Product description: QD model double beam overhead crane has two main beams and heavy duty winch type trolley
  • INQUIRY
QD model double beam overhead crane is applied in open warehouse or rail sideways to conduct common loading/unloading and material handling works. It is a heavy duty type overhead crane that satisfy frequenty using.
This double beam overhead crane is composed of bridge, travelling mechanism, trolley, electric equipment. Bridge adopts box welded structure, crane travelling mechanism adopts separate drive. All mechanism are controlled in driver's cabin. Power supply adopts cable festoon and sliding wire, select one when ordering.

Capcaty of double beam overhead crane: 5T, 10T, 16/3.2T, 20/5T, 32/5T, 50/10T, 75/20T, 100/20T, 100/30T, 125/30T, 150/30T, 160/32T, 200/50T, 400/80T, 550/250T.


The frame of QD model double beam overhead crane:

double beam overhead crane
