Single beam overhead crane

  • LDE model single girder bridge crane

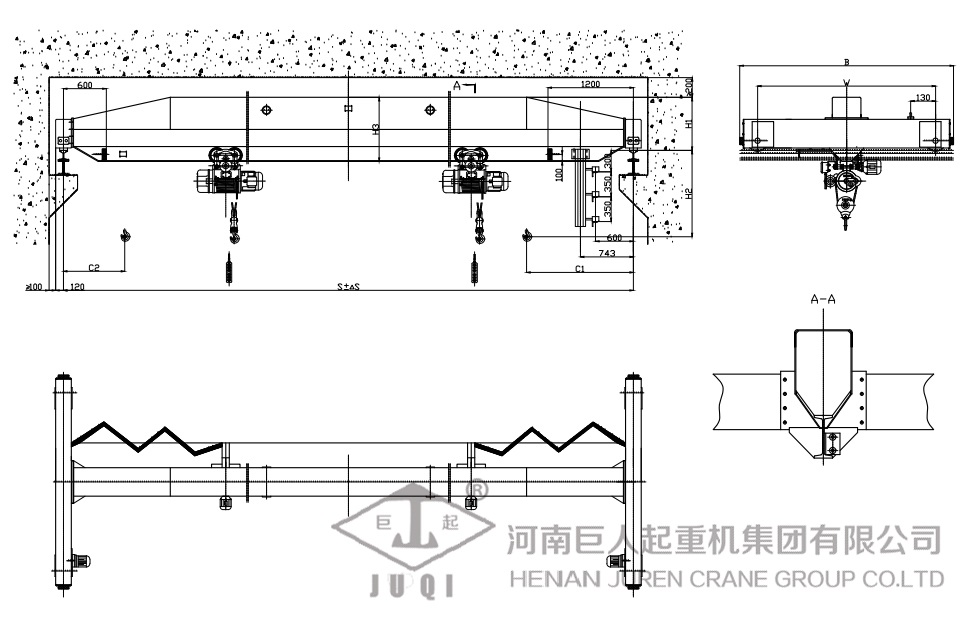

LDE model single girder bridge crane

LDE model single girder bridge crane

  • Capacity: 2~20ton
  • Span: 7.5~35m
  • Lifting height: 6~30m
  • Duty Class: A3/A4
  • Product description: LDE model single girder bridge crane with monorail electric hoist, it has two wire rope electric hoist for lifting mechanism.
  • INQUIRY

LDE model single girder bridge crane is characterized by more reasonable structure and higher strength steel as a whole, the box frame main beam and end carriage are made by U-section steel.
This single girder bridge crane is matched with double units CD1/MD1 model wirerope electric hoist as a complete set, It is light duty class crane, the capacity from 2 to 20 tons. The span from 7.5m to 35m, the working grade are A3 and A4. Working temperature within -25 to +40 centigrade.

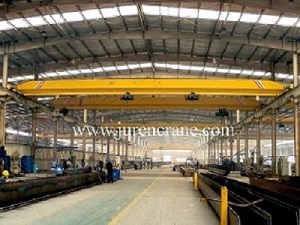

This single girder bridge crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.
The control models are pendant pushbutton control, wireless remote control and cabin control for choice.

double hoist overhead crane
